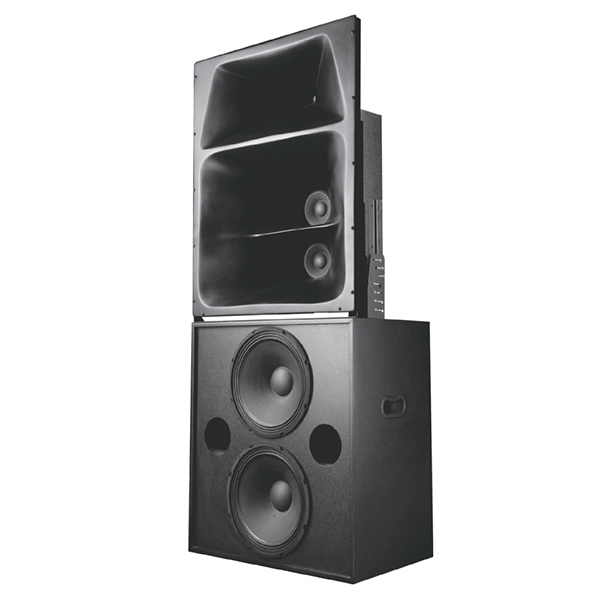

CMS-3215MV

CMS-3215MV

A Legacy of Trust, Innovation, and Excellence


  • FEATURES
  1. Three-way passive system with bass reflex design for 100-150 seats cinema
  2. 90°×40° superior coverage, with 800w rated power handling along with extremely low distortion
  3. Transducer:   2 x 15" (380 mm) diameter, 2.5" (64 mm) edge wound ribbon voice coil woofer
  •         2 x 6.5" (165 mm ) diameter, 1.5" (38 mm) voice coil middle range
  •         1 x 1.75"(44 mm ) titanium diaphragm, compression driver


  • SPECIFICATION


     Speaker Unit     15"x2 + 6.5"x2 + 1.75"x1
     Frequency Response       40Hz ~ 20kHz
     Impedance

     LF: 4Ω

     M/HF: 8Ω

     Rated Output Power

     LF: 600W

     HF: 200W

     Sensitivity

     LF: 98dB

     M/HF: 100dB

     HxV Angle     90° x 40°
     Crossover

     LF/M: 300Hz

     M/HF: 1.5kHz

     Distortion     ≤1%
     Dimension( W×D×H)mm     LF: 760×480×903mm

     HF: 760×400×970mm
     Weight(Kg)     LF: 47Kg,  HF: 29Kg
