FD-2152MVN

FD-2152MVN

A Legacy of Trust, Innovation, and Excellence


  • FEATURES

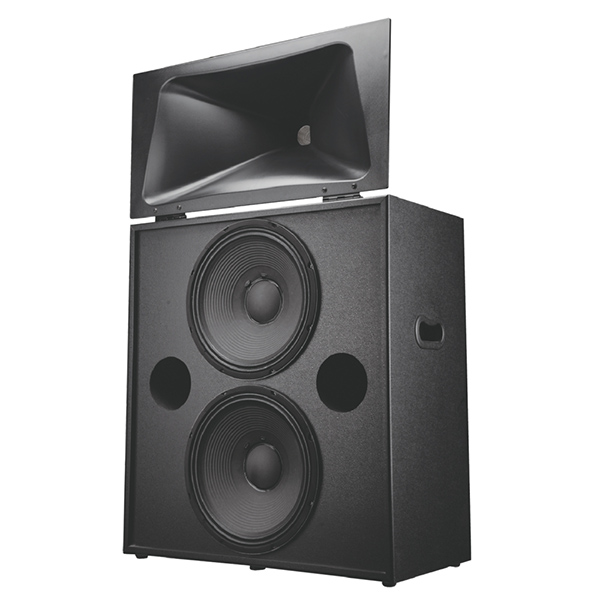

  1. Powerful two-way bass reflex screen speaker system for small cinema (80-100seat)
  2. 2 x 15" (diameter 380mm), 4" voice coil hyper vented woofers
  3. Rated Power handling: 600W continuous IEC pink noise
  4. 3" HF titanium compression driver with a constant directivity horn for a perfect coverage of 90° x 40°
  5. Built-in crossover network with transducer-protection circuitry prolongs equipment life
  6. Available for bi-amplified operation (FD-2152MVN) or fully passive operation (FD-2152MV)
  7. Poplar plywood cabinet with matt black PVC lamination for a compact and cost effective system


  • SPECIFICATION


     Speaker Unit     15"x2 + 3"x1
     Frequency Response       40Hz ~ 20kHz
     Impedance

     LF: 4Ω

     Rated Output Power

     600W

     Sensitivity

     LF: 100dB;M/HF: 99dB

     HxV Angle     90° x 40°
     Crossover

     800Hz

     Distortion     ≤1%
     Dimensions (WxDxH)

     LF: 760 x 400 x 830 mm

     HF: 760 x 347 x 390 mm

     Net Weights

     LF: 51kg

     HF: 10.5kg
