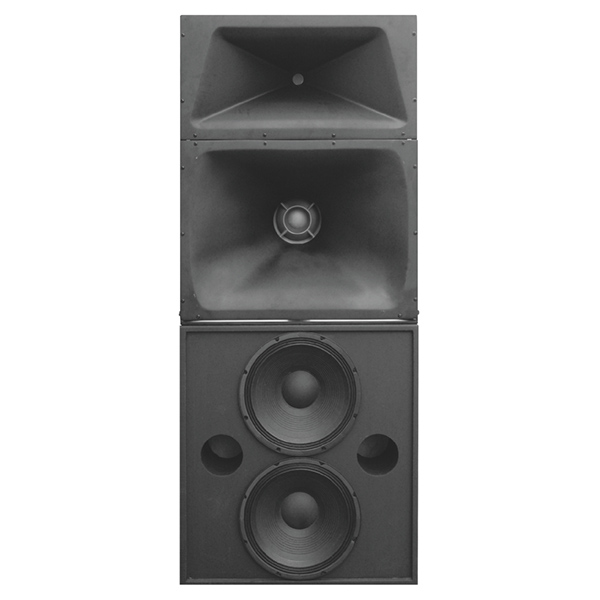

FDM-8250MA

FDM-8250MA

A Legacy of Trust, Innovation, and Excellence


  • FEATURES
  1. Three-way, two- or three-way drive selectable
  2. Double ten inch medium frequency system, high power, low distortion
  3. Uses phase plug coupling technology to improve dialogue clearness.
  4. Ultra-thin, is very suitable for cinemas with limited distance to the back wall
  5. Middle and high frequencies can be adjusted up and down, left and right

  • SPECIFICATION


     Speaker Unit     15"x2 + 10"x1 + 3"x1
     Frequency Response       30Hz ~ 20kHz
     Impedance

     LF: 4Ω

     M/HF: 8Ω

     Rated Output Power

     LF: 800W

     HF: 250W

     Sensitivity

     LF: 100dB

     M/HF: 106dB

     HxV Angle     90° x 40° (+20° to -30°)
     Crossover

     LF/M: 250Hz

     M/HF: 1.7kHz

     Distortion     ≤1%
     Dimensions (WxDxH)

     LF: 760 x 480 x 850 mm

     M/HF: 760 x 440 x 1010 mm

     Net Weights

     LF: 71kg

     M/HF: 37kg
