FD-400GT

FD-400GT

A Legacy of Trust, Innovation, and Excellence


  • FEATURES
  1. Three-way, two- or three-way drive can be selected.
  2. Double ten inch medium frequency system, high power and low distortion.
  3. Middle and high frequencies can be adjusted up and down, left and right.
  4. Uses phase plug coupling technology to improve the clarity of the dialogue.
  5. Thin in dept, very suitable for cinemas with limited distance to the back wall.

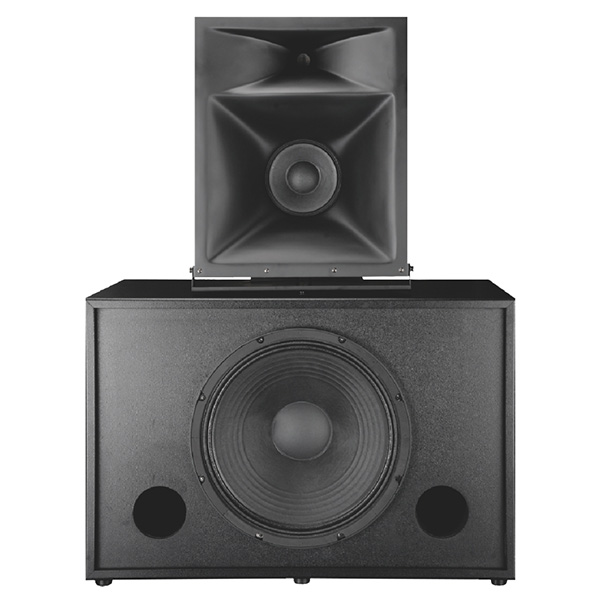

  6. FD-400GT is a newly developed cost-effective single 15-inch three-way main speaker, it is only 40cm in thickness, suitable for small studios.
  7. Built-in passive crossover, through accurate frequency division design, makes the high, medium and bass work in the optimal frequency range respectively, so as to guarantee the accurate and distortion-free restoration of film sound signal.
  8. The speaker uses a 15-inch woofer, a 6.5-inch midrange driver and a 1.75-inch tweeter, where the tweeter and the mid-range driver use constant directional horns. This makes it more sensitive and clearer in language.

  •      SPECIFICATION


     Speaker Unit     15"x1 + 10"x1 + 3"x1
     Frequency Response     40Hz ~ 20kHz
     Impedance

     LF: 4Ω

     M/HF: 8Ω

     Rated Output Power

     LF: 400W

     M/HF: 250W

     Sensitivity

     LF: 97dB

     MF: 106dB

     HxV Angle     90° x 40°
     Crossover

     LF/M: 210Hz

     M/HF: 1.7kHz

     Distortion     ≤1%
     Dimensions (WxDxH)

     LF: 760 x 481 x 510 mm

     M/HF: 760 x 480 x 1010 mm

     Net Weights

     LF: 38.3kg

     M/HF: 9kg
