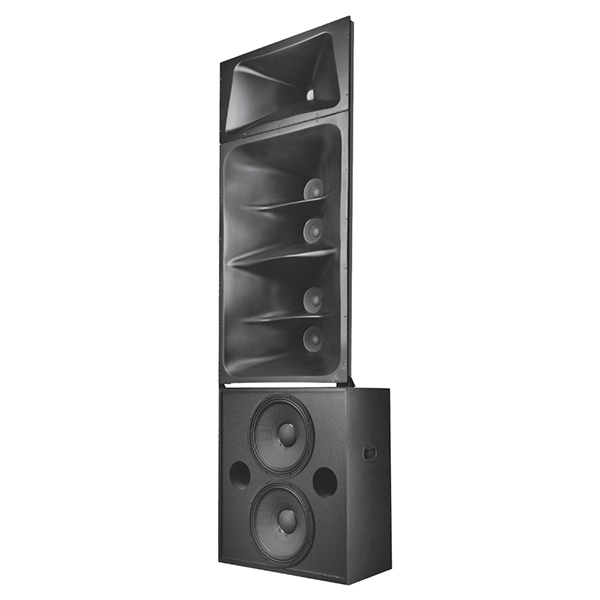

FD-3315MVA

FD-3315MVA

A Legacy of Trust, Innovation, and Excellence


  • FEATURES


  • Three-way system design for high efficient output, optimal coverage
  • Tri-amplified (T) or bi-amplified operation
  • Power handling: LF 800W, M/HF 400W continuous IEC pink noise
  • New generation optimized aperture waveguide and crossover for ultra-low
  •     distortion and extremely clarity of dialog
  • Dual 15-inch low frequency system, with 4-inch PI copper wire voice coil.
  • Adjustable vertical angle for high and mid range
  • lat-front waveguide design for easy baffle wall installation
  • Poplar plywood cabinet with matt black PVC lamination for a compact
  •     and cost effective system


  • SPECIFICATION


     Speaker Unit     15"x2 + 6.5"x4 + 3"x1
     Frequency Response       40Hz ~ 20kHz
     Impedance

     LF: 4Ω

     M/HF: 8Ω

     Rated Output Power

     LF: 800W

     HF: 400W

     Sensitivity

     LF: 101dB

     M/HF: 106dB

     HxV Angle     90° x 40°
     Crossover

     LF/M: 300Hz

     M/HF: 800kHz

     Distortion     ≤1%
     Dimension( W×D×H) mm     LF: 760×440×830mm

     HF: 760×400×1570mm
     Weight(Kg)     LF: 73.2Kg,  HF: 48.7Kg
