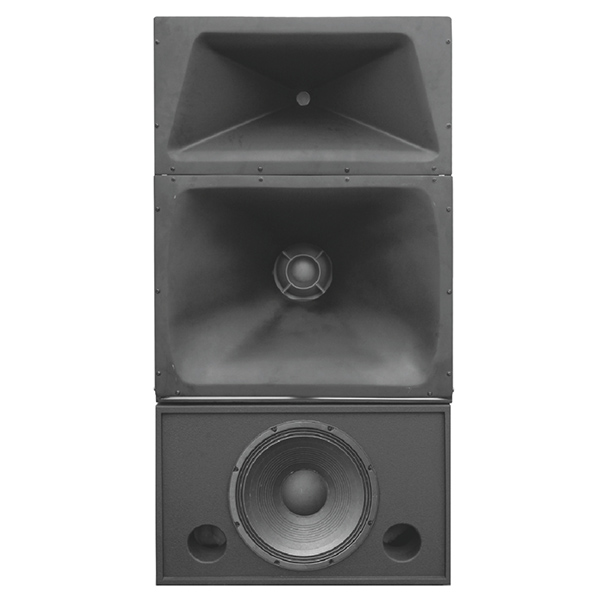

FD-850GT

FD-850GT

A Legacy of Trust, Innovation, and Excellence


  • FEATURES
  1. Cinema screen speaker  for small- to medium-sized theaters, delivering high SPLs and covering rooms up to 22 m.
  2. Two drive modes ( tri-amp and bi-amp) for option
  3. Built-in crossover network with transducer-protection circuitry ensures long-term stability.
  4. MF use phase coupling technology, provides highly articulate dialogue
  5. Large format 3" neodymium, titanium diaphragm, high frequency compression driver for all GT series
  6. Shallow depth facilitates installation behind the screen


  • SPECIFICATION


     Frequency Response

     35Hz-20KHz

     Impedance     LF: 4Ω

     M/HF: 8Ω

     Rated Power

     LF: 600W

     M/HF: 250W

     Sensitivity

     LF: 100dB

     M/HF: 106W

     HxV Angle     90° x 40°
     Crossover

     LF/M: 210Hz

     M/HF: 1.7kHz

     Speak Units     15"x1 + 10"x1 + 3"x1
     Distortion     ≤1%
     Dimensions (WxDxH)

     LF:760×481×510mm

     M/HF:760×480×1010mm

     Weights

     LF: 39.2kg

     M/HF: 35kg
