ML-12
ML-12
A Legacy of Trust, Innovation, and Excellence
Description

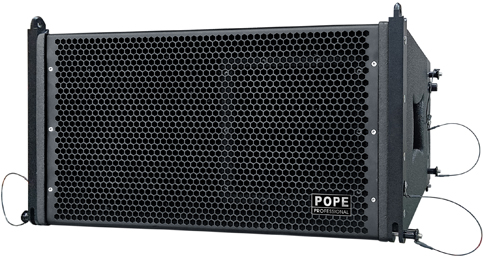

The POPE Professional® ML-12 is a three-way
Line Array system. The Line Array speaker consist of POPE Professional®, one
12” Neodymium woofer that is circuited independently, mounted in separate bass
reflex enclosure and four high efficiency power handling 6.5” Neodymium high
mid range transducers are mounted in a V-shaped configuration combined with two
36 mm exit throat Neodymium compression drivers coupled to individual
Waveguides those are vertically aligned. The Line Source Former Horn produces
wave front similar to ribbon driver. Advanced European transducers are
providing high power-to-weight ratio.
The POPE Professional® ML-12 Line Array
Speaker utilizes patented Line Source Former Technology Horn, High power
maximum SPL 125dB continuous,136dB peak, Wide bandwidth 80Hz - 20kHz, ±3dB,
True 90°(-6dB) horizontal mid and HF pattern control, Fast integral rigging
system with variable splay angles from 0°to 10°, 1°step.
The enclosure constructed with 3/4” (18 mm) birch plywood,
screwed and glued together for maximum strength and rigidity. The rear panel
carries 2 x 8 pin Speakon connector. The ML-12 systems are designed to be
powered by POPE Professional® power amplifiers. The POPE
Professional® XT Series digital signal processor is available
to provide Crossover, Delay, Equalizer and Limiter functions.
