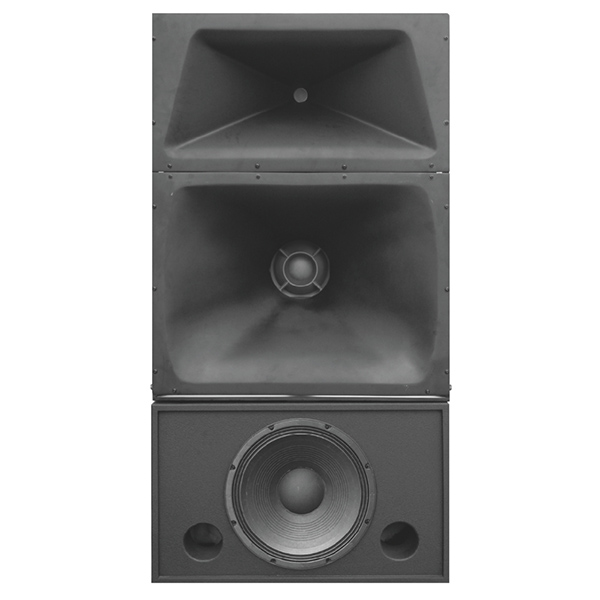

FDM-4250MA

FDM-4250MA

A Legacy of Trust, Innovation, and Excellence


  • FEATURES

  1. 3-way bi-amplified or passive screen channel system
  2. Low-distortion waveguide provide highly articulate dialogue
  3. Large format 3" neodymium, titanium diaphragm, high frequency
  • compression driver
  1. Differential 15" low frequency woofers for improved power handling
  2. Flat front waveguide design for easy baffle wall installation
  3. Components come pre-assembled to reduce field assembly time


  • SPECIFICATION


     Speaker Unit     15"x1 + 10"x1 + 3"x1
     Frequency Response      35Hz ~ 20kHz
     Impedance

     LF: 4Ω

     M/HF: 8Ω

     Rated Output Power

     LF: 400W

     HF: 250W

     Sensitivity

     LF: 100dB

     M/HF: 105dB

     HxV Angle     90° x 40° (+20° to -30°)
     Crossover

     LF/M: 250Hz

     M/HF: 1.7kHz

     Distortion     ≤1%
     Dimensions (WxDxH)

     LF: 760 x 480 x 470 mm

     M/HF: 760 x 440 x 1010 mm

     Net Weights

     LF: 42.8kg

     M/HF: 35kg
