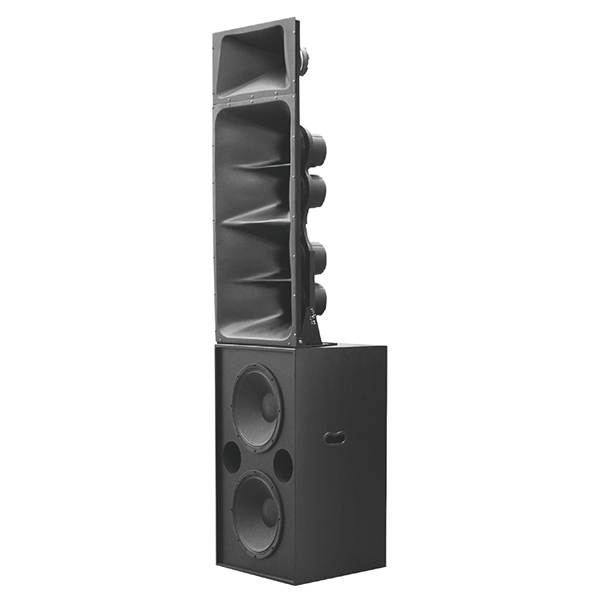

FDM-3218MVA

FDM-3218MVA

A Legacy of Trust, Innovation, and Excellence


  • FEATURES

  1. 3-way loudspeaker system affords the ultimate in audio performance for larger cinema spaces with high SPL output

  2. Dual 18-inch low frequency system deliver1600W  rated power output, with superior bass extension contentiously.

  3. More consistent coverage over a wider bandwidth to ensure a high quality movie going experience from every seat in the house


  • SPECIFICATION


     Speaker Unit     18"x2 + 8"x4 + 3"x1
     Frequency Response     30Hz ~ 20kHz
     Impedance

     LF: 4Ω

     M/HF: 8Ω

     Rated Output Power

     LF: 1600W

     MF: 1400W

     HF: 150W

     Sensitivity

     LF: 100dB

     MF: 106dB

     HF: 113dB

     HxV Angle     90° x 50° (+20° to -30°)
     Crossover

     LF/M: 250Hz

     M/HF: 1.3kHz

     Distortion     ≤1%
     Dimensions (WxDxH)

     LF: 760 x 605 x 1245 mm

     M/HF: 760 x 450 x 1685 mm

     Net Weights

     LF: 89.2kg

     M/HF: 58kg
